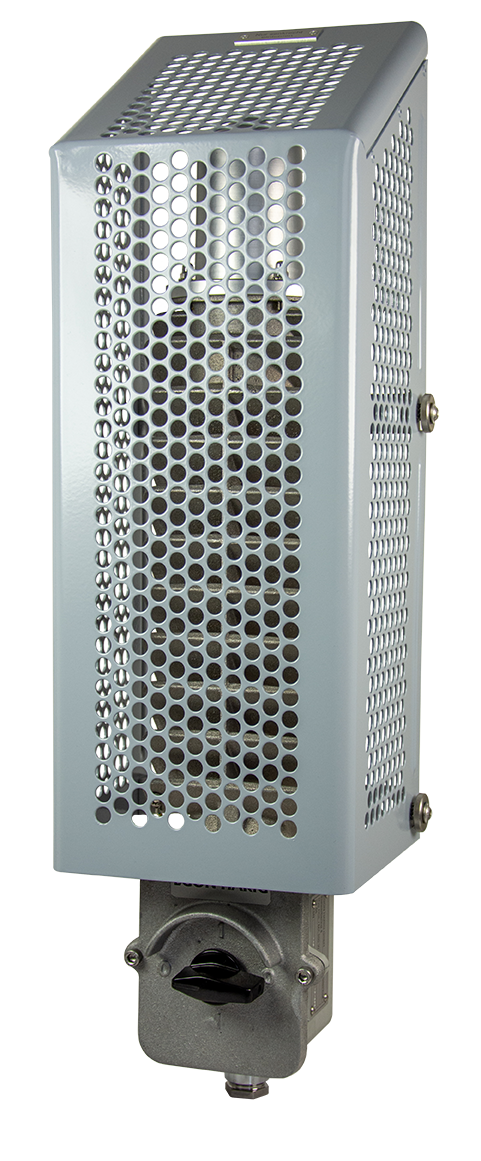

Electrical ship heater
HGL/MA 500-*

(P/N: 80869 - HGL/MA 500-A)
(P/N: Other depending on version)

Dimensions (max. h x w x d)	660 mm x 180 mm x 160 mm
Weight	approx. 5.0 kg
Wattage	500 W
Power Supply	220 V DC / 440 V AC
Protection Class acc. to DIN 40050	IP 55
Cable gland	M24 x 1.5 DIN 89280
Finish	RAL 7001 silver grey
Ambient temperature	max. 30 °C
Mounting	4x hole 10.5 mm

Special features

The electric marine heaters HGL/MA are a form-fit-function product to the variants of the company IBAK (IBAKmarine) used for decades.

The company EGON HARIG GmbH has acquired the entire production rights of the HGL/MA.
These were adapted for todays standard and new shock calculations were carried out.

Due to the new improved and certified hood, sharp edges are avoided and the handling all day is simplified and safer.

The new improved version has been approved by the Deutsche Bundesmarine.
