Aerosol as an extinguishing agent

Aerosol as an extinguishing agent, often referred to as dry mist, is a potassium carbonate-based particle extinguisher, which separates the chemical bond of the flame at the molecular level.

What is an aerosol?

An aerosol is a heterogeneous mixture of a gas and fine liquid or solid colloidal suspended particles.

Definition of colloids: particles with a diameter of a few micro- to nanometers, finely dispersed in a solid, gas or liquid
   NO foam          NO water          NO gas          NO powder

Structure of an extinguishing generator

Aerosol as extinguishing agent in solid form is the main component in cylindrical or box-shaped extinguishing generators.

In the event of fire, this is ignited by an electrical or thermal impulse. The reaction process produces potassium carbonate (also used as an additive E501 in food), which exits as a solid aerosol (the average particle size of the extinguishing agent is between 0.5 and 2.5 μm).

When the extinguishing agent exits the aerosol extinguishing generators, the chemical chain reaction of the flame is interrupted, and the fire is extinguished within seconds.

Structure of an extinguishing generator
Electrical connection
Electric trigger
Aerosol as solid compound
Cooling zone
Discharge port

How does aerosol extinguishing agent extinguish?

Fire fighting at the molecular level

While conventional extinguishing agents rely on cooling (1) or oxygen removal (2) during the extinguishing process, aerosol as an extinguishing agent uses the molecular level (4) to break up the resulting flame within seconds and thus extinguish it.

This chemical reaction prevents re-ignition as long as the aerosol extinguishing agent is present in the room.

1 = heat (ignition energy) e.g. ext. water
2 = oxygen (oxidizing agent) e.g. CO2
3 = fuel
4 = uninhibited chemical chain reaction Aerosol extinguishing agent

Extinguishing process

Löschaktioin An aerosol is a mixture of a gas and very fine liquid or solid particles. When an aerosol generator is triggered, the aerosol based on potassium carbonate is generated and released.

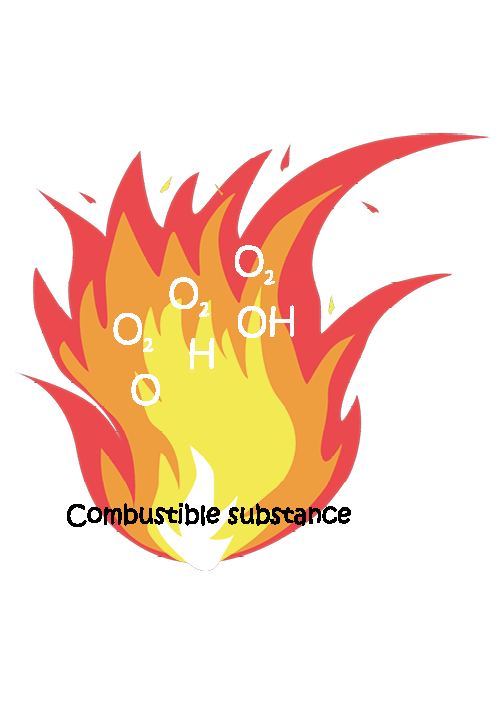

Flamme Chemical process:
When the aerosol hits the flame, the binding of free radicals interrupts the chain reaction of the combustion process. The flame extinguishes.
For a chemical reaction to take place the activation energy is needed. The required amount of energy is provided by the excess energy from the fire. Aerosol
The flame extinguishes in seconds. As long as the aerosol is still present in the room re ignition is impossible.

What does the aerosol extinguishing agent extinguish?

Due to the structure and operation, aerosol extinguishing agent can extinguish many classes of fire.
Tested are according to European standard EN-2 :

Brandklasse A Brandklasse B Brandklasse C Brandklasse F

Advantages of aerosol extinguishing agent

  • Extinguishing of incipient fires within seconds
  • Not electrically conductive
  • Only small quantities required for extinguishing
  • Minimization of consequential damage
  • Fire classes A, B, C, and F

  Health and environment
  • No(n) oxygen deprivation/displacement
  • Non-toxic
  • Harmless to health
  • environmentally neutral ("green agent")
  • No effect on the ozone layer

  • Not design determining
  • Unpressurized installation
  • Modular
  • Low weight and volume
  • Quick and easy to integrate into existing systems

    Economic efficiency
  • Low investment
  • Favorable installation cost
  • Faster and less expensive maintenance
  • Faster and less expensive maintenance
  • Fast repair & recommissioning after extinguishing

For an individual review of your application or questions about aerosol extinguishing agents, please contact us by phone or e-mail.
