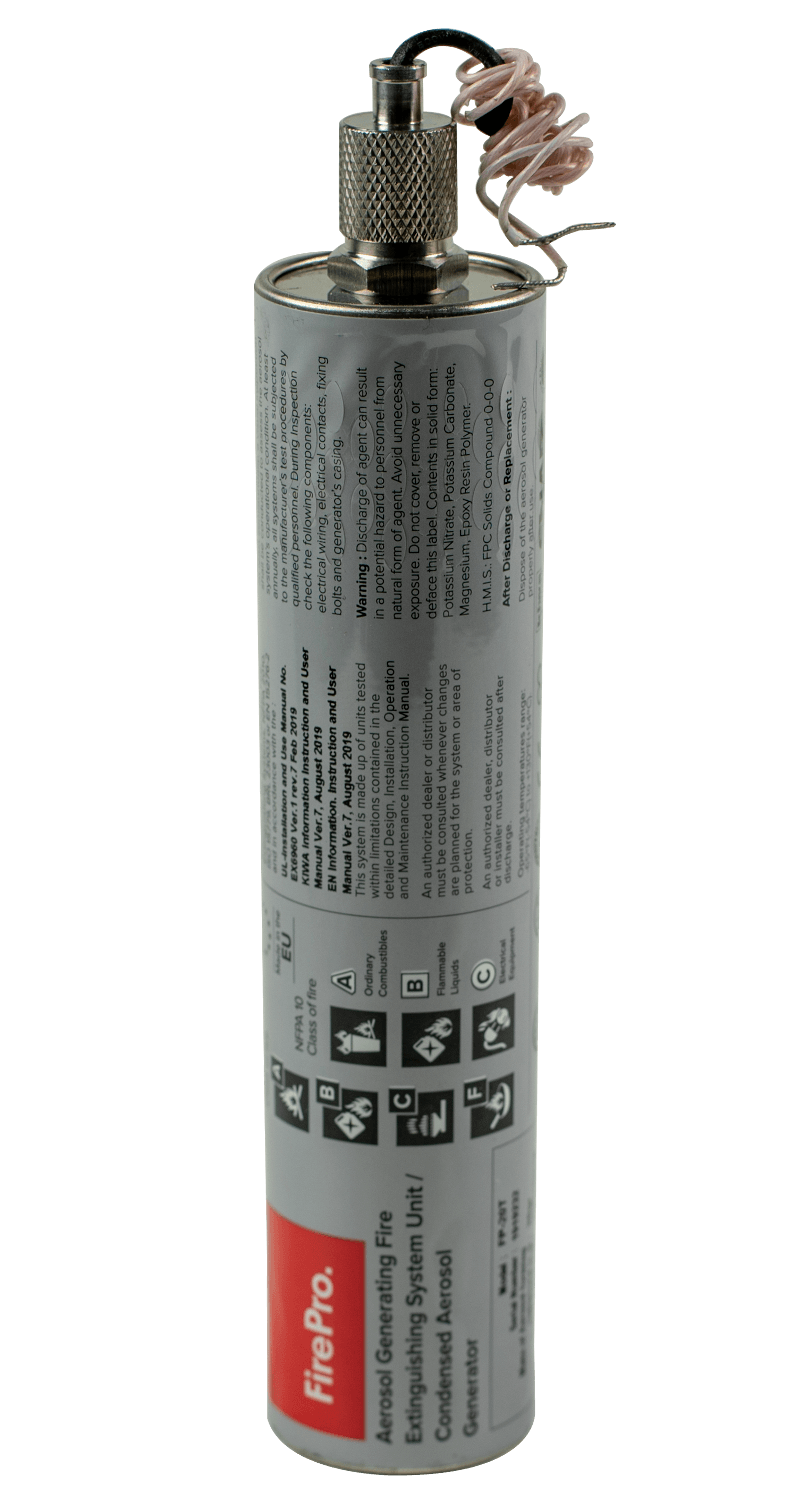

Aerosol Fire Extinguishing Generator
FP-20 TH / T
(P/N: 40357 / 40327)
| Extinguishing agent quantity | 20 g |
| Activation | electrical (20T) and thermal (20TH; thermal actuator necessary) |
| Operating temperature | -54 °C - +100 °C |
| Fire class | A, B, C and F (currently proven only up to 5 F = extinguishing capacity up to 5 liters of cooking oil/fat) |
| Height | 165 mm |
| Diameter | 32 mm |
| Weight | 310 g |
| Discharge time | ca. 6 Seconds |
| Discharge length | ca. 1 m |
| Safety distance (easily flammable parts & creature) | 10 cm |
| Service Life from manufacture | 15 Years |
Approvals and Certificates
Description
The FP-20 is, depending on the version, an Aerosol-Fire-Extinguishing-Generator with an electrical (20T) or thermal (20TH; thermal actuator necessary) activation, which releases an aerosol
extinguishing agent. This will be used for firefighting as a total
flooding system for rooms and objects.
• Effective fire fighting on site
• Non-toxic extinguishing agent: AEROSOL
• Period of use: max. 15 years
• Pressureless stainless steel container
• For Fire class: A, B, C and F
• Multiple certified
Matching it :
Test-UnitPSDY06-FP
Marine
Building
